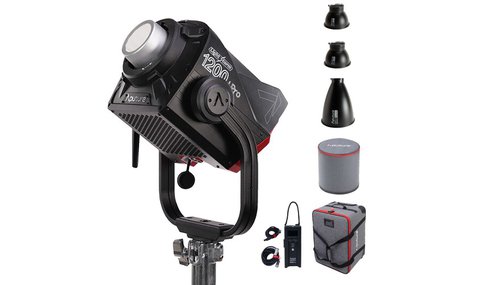

Aputure LS Cob 1200D

130€ HT/JOUR
Pas de description de ce produit

Product Specifications

CCT : 5600K
CRI : ≥96
TLCI : ≥98
CQS : ≥95
SSI (D56) : ≥73
TM-30 RF (Average) : 93
TM-30 RG (Average) : 102
Beam Angle (No Accessories) : 66°
Beam Angle BM1215 Bowens Mount Hyper Reflector (Narrow) : 15°
Beam Angle BM1230 Bowens Mount Hyper Reflector (Medium) : 30°
Beam Angle BM1245 Bowens Mount Hyper Reflector (Wide) : 45°
F10 Fresnel : 15° ~ 45°
Lumens : 126,413 lm
Max Power Output : ≤1,200W
Max Power Consumption : ≤1,440W
Max Operating Current : 15A Max
Operating Voltage (Power Supply) : 100V~240V, 50Hz/60Hz
Operating Voltage (Battery) 3-Pin XLR (48V DC) - Half Output (720W / One Input) : Regulated 48V/15A
Operating Voltage (Battery) 3-Pin XLR (48V DC) - Full Output (1,440W / Two Inputs) : 2x Regulated 48V/15A
DC Input : 2x 48V 3-Pin XLR DC Inputs (720W Each)
Operating Temperature : -20°C ~ 45°C / -4°F ~ 113°F
Dimming : 0-100%; Linear, Exponential, Logarithmic, S-Curve
Screen Type : LCD
Firmware Upgradeable : USB (FAT16/FAT32), Sidus Link
Cooling Method : Active Cooling
Head Cable : LS 1200 Series 7-Pin Weatherproof Head Cable (7.5m)
Max Head Cable Length : 7.5m
Power Cable : Neutrik® powerCON TRUE1 TOP AC Cable for LS 1200 Series (6m)*
Accessory Mount : Bowens Mount
Tilt Angle : 360°
Mounting : 28mm / 1.125in (Junior Pin)
Carrying Case : Telescoping Handle, Wheels
Estimated LED Lifetime (L70) : 50,000H
Est. Color Shift Over Lifetime (CCT) : 2% (6,000H)
Est. Max Flicker-Free FPS : 2,000 FPS
Certifications : CE, FCC, ROHS, KC, NCC, PSE, BIS

Control Methods

Control Methods : On-board, Sidus Link App, DMX512, Art-net & sACN via etherCON, LumenRadio CRMX
Wireless Operating Range (Bluetooth) : ≤80m
Wireless Operating Range (LumenRadio) : ≤100m

Weight

Lamp Head w/o Yoke : 7.57kg / 16.69lbs
Lamp Head w/ Yoke : 8.95kg / 19.73lbs
Control Box : 5.80kg / 12.79lbs
Lightning Clamp : 670g / 1.48lbs
Reflector Case (Filled) : 4.15kg / 9.15lbs
Rolling Case (Filled) : 27.25kg / 60.07lbs

Dimensions

Lamp Head w/o Yoke : 33.23 x 23.16 x 21.63cm / 13.08 x 9.11 x 8.51in
Lamp Head w/ Yoke : 33.23 x 33.12 x 54.35cm / 13.08 x 13.03 x 21.40in
Control Box : 19.99 x 16.10 x 33.60cm / 7.87 x 6.33 x 13.22in
Lightning Clamp : 10.35 x 8.74 x 12.5cm/ 4.07 x 3.44 x 4.92in
Reflector Case : 41 x 40 x 40cm / 16.14 x 15.75 x 15.75in
Rolling Case : 67 x 48 x 48cm / 26.38 x 18.9 x 18.9in


Photometrics

DistanceBare BulbBM1215 Bowens Mount Hyper Reflector (Narrow)BM1230 Bowens Mount Hyper Reflector (Medium)BM1245 Bowens Mount Hyper Reflector (Wide)F10 Fresnel (Flood)F10 Fresnel (Spot)
3M6,380 lux / 598 fc83,100 lux / 7,788 fc22,400 lux / 2,099 fc13,010 lux / 1,364 fc14,470 lux / 1,344 fc32,410 lux / 3,010 fc
5M2,802 lux / 263 fc28,340 lux / 2,656 fc8,200 lux / 769 fc4,800 lux / 635 fc5,590 lux / 519 fc12,090 lux / 1,123 fc
7M1,538 lux / 144 fc15,200 lux / 1,425 fc4,660 lux / 437 fc2,706 lux / 264 fc2,840 lux / 264 fc6,160 lux / 572 fc
9M964 lux / 90 fc8,580 lux / 804 fc2,880 lux / 270 fc1,775 lux / 152 fc1,920 lux / 178 fc3,940 lux / 366 fc
